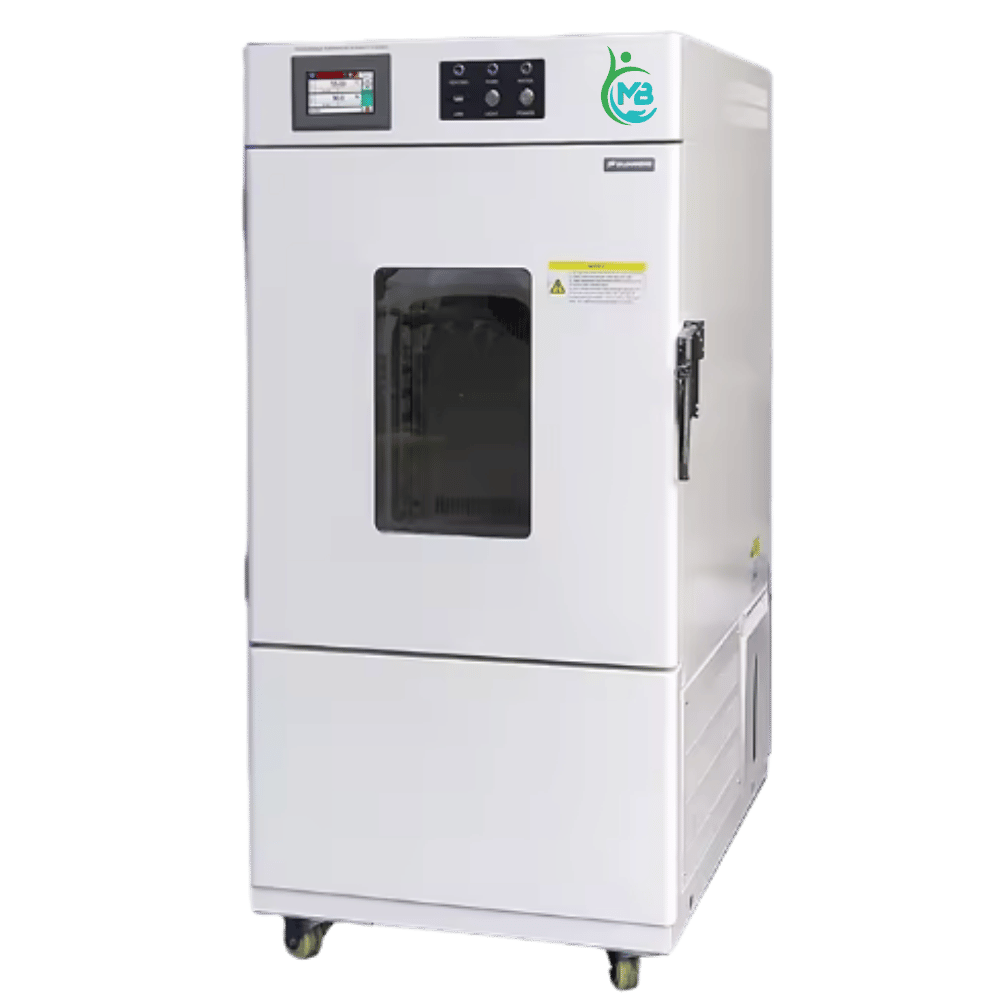

Stability Chambers
Thermolab Scientific Chambers are perfectly designed for the high requirements of stability studies and climatic tests. With Stability Chambers specifically developed to meet FDA/ICH stability requirements generating exceptional control and uniformity of both temperature and humidity.
| Usage | Laboratory |
| Color | Sliver |
| Power Supply | Electric |
| Dimension | (L*W*H) 660 x 655 x 1250 Millimeter (mm) |
| Voltage | 220-240 Volt (v) |
| Material | Stainless Steel |
| Warranty | 1 Year |
Touch Screen Display
Touch Screen Display
Touch Screen Display
Touch Screen Display
Touch Screen Display
Touch Screen Display
Touch Screen Display
Touch Screen Display
- Double walled modular structure with 3” thick PUF insulation
- Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
- Interior illumination
- Inside full length observation glass door with secure gasket
- Handle and hinges for positive sealing with lock and key arrangement
- Heavy-duty door hinges and latches to maintain a secure and uniform seal
- Racks & trays – Stainless steel with adjustable height
- 65 mm Port Hole with rubber seal to insert sensors for validation purpose
- Interior illumination for working area
- U shaped S.S. Nichrome wire air heaters
- Humidity system with evaporation tray and reservoir tank with water level arrangement
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
- PLC based control system with 7” colour touchscreen HMI.
- Safety controller sensor to cut off the supply in case of overshoot and undershoot of Temperature giving audio visual alarm
- Web based online monitoring
- Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
- Works on 23V AC single phase 50Hz
- Complete safety and alarm system
- 21 CFR Part 11 Compliance Window based communication software for data management
- Stand by refrigeration system & Stand by humidity system (Except for 90 Ltrs.)
- Scanner 4 point temperature and 4 point humidity scanner complete with sensors and printer interface and data storage facility.
- Mobile Alert system
- Door Access Security System
- Security Alarm System
- Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
- GMP Model(G) : Inside S.S. 304 & outside S.S. 304
- Temperature Range : 20°C to 60°C
- Temperature Accuracy : ± 0.2°C
- Temp Uniformity : ± 2°C
- Humidity Range : 40% to 95% RH
- Humidity Accuracy : ± 2% RH
- Humidity Uniformity : ± 3% RH
| Model | Internal | Dimensions in cms | Max No. of Trays | |||||
| (s)OR(G) | Cu.Ft/Ltrs. | Internal | External | |||||
| W | D | H | W | D | H | |||
| TH 90 S/G | 3/900 | 45 | 40 | 50 | 60 | 82 | 104 | 3 |
| TH 200/G | 8/200 | 60 | 63 | 60 | 75 | 106.5 | 117 | 4 |
| TH 325/G | 12/325 | 60 | 60 | 90 | 75 | 106.5 | 147 | 6 |
| TH 400 S/G | 16/400 | 60 | 63 | 106 | 75 | 106.5 | 163 | 7 |
| TH 600 S/G | 22/600 | 80 | 80 | 95 | 95 | 126.5 | 154 | 6 |
| TH 800 S/G | 28/800 | 80 | 80 | 125 | 95 | 126.5 | 187 | 9 |
| TH 1000 S/G | 32/1000 | 80 | 8 | 157 | 95 | 126.5 | 219 | 11 |
- Double walled modular structure with 3” thick PUF insulation
- Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
- Interior illumination
- Inside full length observation glass door with secure gasket
- Handle and hinges for positive sealing with lock and key arrangement
- Heavy-duty door hinges and latches to maintain a secure and uniform seal
- Racks & trays – Stainless steel with adjustable height
- 65 mm Port Hole with rubber seal to insert sensors for validation purpose
- Interior illumination for working area
- U shaped S.S. Nichrome wire air heaters
- Humidity system with evaporation tray and reservoir tank with water level arrangement
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
- PLC based control system with 7” colour touchscreen HMI.
- Safety controller sensor to cut off the supply in case of overshoot and undershoot of Temperature giving audio visual alarm
- Web based online monitoring
- Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
- Works on 23V AC single phase 50Hz
- Complete safety and alarm system
- 21 CFR Part 11 Compliance Window based communication software for data management
- Stand by refrigeration system & Stand by humidity system (Except for 90 Ltrs.)
- Scanner 4 point temperature and 4 point humidity scanner complete with sensors and printer interface and data storage facility.
- Mobile Alert system
- Door Access Security System
- Security Alarm System
- Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
- GMP Model(G) : Inside S.S. 304 & outside S.S. 304
- Temperature Range : 20°C to 60°C
- Temperature Accuracy : ± 0.2°C
- Temp Uniformity : ± 2°C
- Humidity Range : 40% to 95% RH
- Humidity Accuracy : ± 2% RH
- Humidity Uniformity : ± 3% RH
| Model | Internal | Dimensions in cms | ||
(s)OR(G) | Cu.Ft/Ltrs. | Internal | ||
| W | D | H | ||
| TH 90 S/G | 3/900 | 45 | 40 | 50 |
| TH 200/G | 8/200 | 60 | 63 | 60 |
| TH 325/G | 12/325 | 60 | 60 | 90 |
| TH 400 S/G | 16/400 | 60 | 63 | 106 |
| TH 600 S/G | 22/600 | 80 | 80 | 95 |
| TH 800 S/G | 28/800 | 80 | 80 | 125 |
| TH 1000 S/G | 32/1000 | 80 | 8 | 157 |
| Model | Internal | Dimensions in cms | ||
(s)OR(G) | Cu.Ft/Ltrs. | External | ||
| W | D | H | ||
| TH 90 S/G | 3/900 | 60 | 82 | 104 |
| TH 200/G | 8/200 | 75 | 106.5 | 117 |
| TH 325/G | 12/325 | 75 | 106.5 | 147 |
| TH 400 S/G | 16/400 | 75 | 106.5 | 163 |
| TH 600 S/G | 22/600 | 95 | 126.5 | 154 |
| TH 800 S/G | 28/800 | 95 | 126.5 | 187 |
| TH 1000 S/G | 32/1000 | 95 | 126.5 | 219 |
