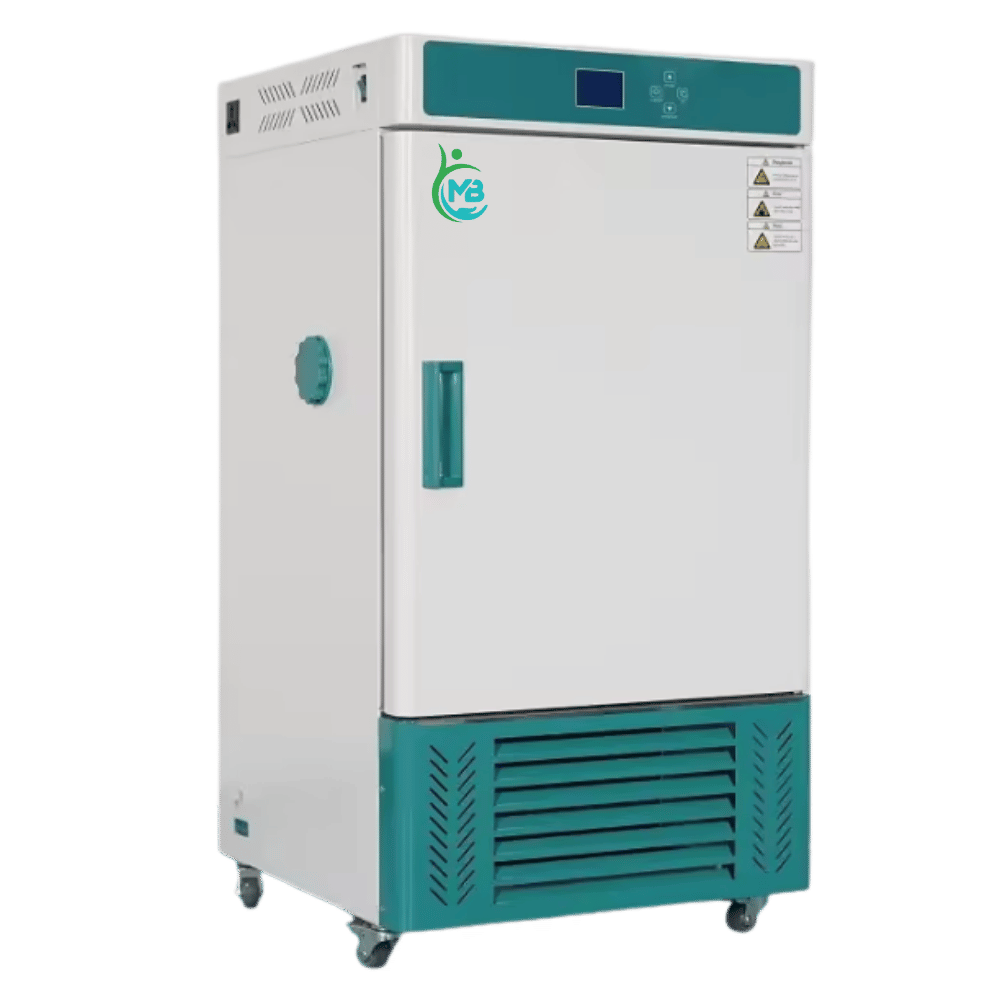

B.O.D. Incubator
MB Lab Pro Services B.O.D. Incubator are precision-engineered laboratory units designed for accurate Biochemical Oxygen Demand (BOD) testing, low-temperature incubation, and controlled environmental studies. Manufactured as per ISI specifications and calibrated against ERTL standards, these incubators deliver excellent temperature stability, uniformity, and long-term reliability for laboratories, research centers, environmental testing labs, and quality control departments.
| Parameter | Details |
| Usage | Laboratory / Environmental Testing / Water & Wastewater Analysis / Research |
| Color | White / Grey (Powder Coated / Stainless Steel) |
| Power Supply | Electric |
| Voltage | 230V AC, 50 Hz (Single Phase) |
| Material | STD: SS 304 Inner & Powder-Coated MS Outer GMP: Full Stainless Steel 304 |
| Warranty | 1 Year |
Uniform Airflow System
High Precision Sensors
Smart Safety Controls
Energy-Efficient Cooling
Auto Defrost Function
Long-Life Components
High-Grade Steel Build
Overload Protection System
▪️Heavy-duty triple-walled construction at back, bottom, and sides for superior insulation
▪️Designed and tested as per ISI & ERTL standards
▪️STD Model: Inner chamber SS 304 mirror polished, outer MS powder coated
▪️GMP Model: Inner & outer chamber made from SS 304 with matt finish exterior
▪️Microprocessor-based PID temperature controller with dual digital display
▪️High-accuracy PT100 (RTD) temperature sensor
▪️Uniform cooling and heating through forced internal air circulation system
▪️Efficient hermetically sealed compressor with overload protection
▪️CFC-free R-134a eco-friendly refrigerant
▪️Moisture-removing heating system with tubular air heaters
▪️Internal chamber illumination for clear sample observation
▪️Double-door system with outer metallic door and inner transparent viewing door
▪️Heavy-duty castor wheels for easy movement
▪️Stainless steel rod shelves provided as per chamber volume
▪️Safety systems including compressor delay timer, MCB, and high-temperature cut-off
▪️PC & printer connectivity via data logger with software
▪️RS-485 communication port
▪️Validation port
▪️Temperature Range: 10°C to 60°C
▪️Temperature Accuracy: ±0.5°C
▪️Temperature Uniformity: ±1.0°C
▪️Temperature Sensor: PT100 (RTD)
▪️Controller: Microprocessor-based PID controller
▪️Memory Backup: Non-volatile memory retention during power failure
▪️Insulation: 65 mm thick PUF insulation
▪️Air Circulation: Motor & blower system with baffle wall design
▪️Refrigeration System: Hermetically sealed compressor
▪️Door System: Double door with magnetic gasket & transparent inner door
| Capacity | Inner Dimensions (H × D × W) cms | No. of Shelves |
| 1.5 CFT (45 L) | 35 × 35 × 35 | 1 |
| 3 CFT (90 L) | 50 × 43 × 43 | 2 |
| 6 CFT (180 L) | 70 × 51 × 51 | 2 |
| 10 CFT (300 L) | 100 × 55 × 55 | 3 |
| 12 CFT (360 L) | 100 × 60 × 60 | 3 |
| 16 CFT (480 L) | 114 × 65 × 65 | 4 |
- Double walled modular structure with 3” thick PUF insulation
- Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
- Interior illumination
- Inside full length observation glass door with secure gasket
- Handle and hinges for positive sealing with lock and key arrangement
- Heavy-duty door hinges and latches to maintain a secure and uniform seal
- Racks & trays – Stainless steel with adjustable height
- 65 mm Port Hole with rubber seal to insert sensors for validation purpose
- Interior illumination for working area
- U shaped S.S. Nichrome wire air heaters
- Humidity system with evaporation tray and reservoir tank with water level arrangement
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
- PLC based control system with 7” colour touchscreen HMI.
- Safety controller sensor to cut off the supply in case of overshoot and undershoot of Temperature giving audio visual alarm
- Web based online monitoring
- Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
- Works on 23V AC single phase 50Hz
- Complete safety and alarm system
- 21 CFR Part 11 Compliance Window based communication software for data management
- Stand by refrigeration system & Stand by humidity system (Except for 90 Ltrs.)
- Scanner 4 point temperature and 4 point humidity scanner complete with sensors and printer interface and data storage facility.
- Mobile Alert system
- Door Access Security System
- Security Alarm System
- Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
- GMP Model(G) : Inside S.S. 304 & outside S.S. 304
- Temperature Range : 20°C to 60°C
- Temperature Accuracy : ± 0.2°C
- Temp Uniformity : ± 2°C
- Humidity Range : 40% to 95% RH
- Humidity Accuracy : ± 2% RH
- Humidity Uniformity : ± 3% RH
| Capacity | Inner Dimensions (H × D × W) cms | No. of Shelves |
| 1.5 CFT (45 L) | 35 × 35 × 35 | 1 |
| 3 CFT (90 L) | 50 × 43 × 43 | 2 |
| 6 CFT (180 L) | 70 × 51 × 51 | 2 |
| 10 CFT (300 L) | 100 × 55 × 55 | 3 |
| 12 CFT (360 L) | 100 × 60 × 60 | 3 |
| 16 CFT (480 L) | 114 × 65 × 65 | 4 |
