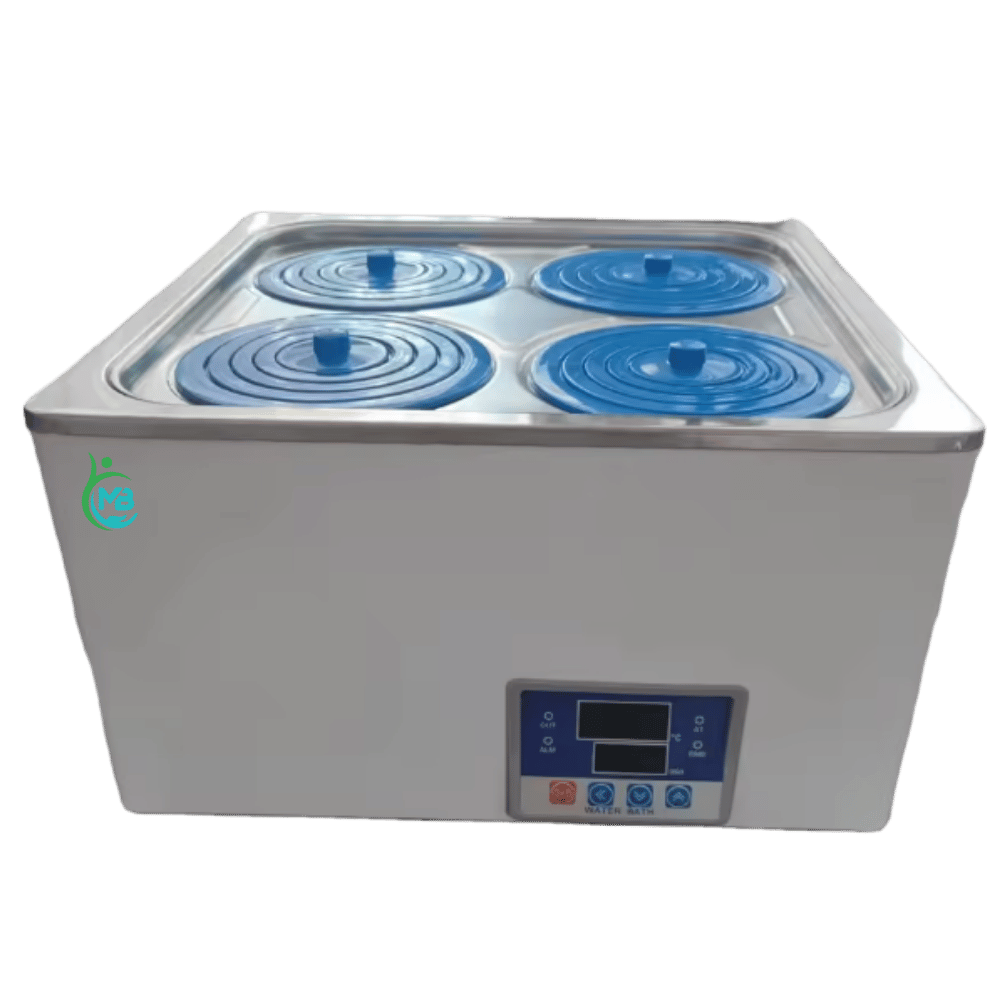

Water Baths – Universal & Dyepots
The MB Lab Pro Services Water Baths – Universal & Dyepots are designed to provide accurate, uniform, and stable temperature control for a wide range of laboratory and industrial heating applications. These water baths are ideal for incubation, sample heating, chemical reactions, dyeing processes, and quality control testing. Manufactured with double-walled insulated construction, these water baths ensure minimal heat loss and maximum energy efficiency. Available in Universal and Dyepots configurations, and offered in both STD and GMP models, they are suitable for laboratories, pharmaceutical industries, textile dyeing labs, research centers, and educational institutions.
| Parameter | Details |
| Usage | Laboratory, Pharmaceutical, R&D, Quality Control, Textile & Dye Testing, Educational Institutions |
| Color | Stainless Steel / Powder Coated Finish |
| Power Supply | Electric |
| Dimension | As per selected model (refer Technical Data) |
| Voltage | 230 V AC, 50 Hz |
| Material | STD: Stainless Steel inner with powder-coated outer GMP: Full Stainless Steel 304 |
| Warranty | 1 Year Standard Warranty |
Uniform Airflow System
High Precision Sensors
Smart Safety Controls
Energy-Efficient Cooling
Auto Defrost Function
Long-Life Components
High-Grade Steel Build
Overload Protection System
▪️Rectangular double-walled construction for efficient temperature retention
▪️Inter-wall space filled with special-grade glass wool insulation to reduce heat loss and save energy
▪️Inner chamber made from stainless steel for corrosion resistance and easy cleaning
▪️Suitable for both general laboratory heating and dye pot applications
▪️Accurate thermostatic temperature control for stable performance
▪️Temperature range from 5°C above ambient up to 95°C ±2°C
▪️Uniform water heating ensures consistent temperature throughout the bath
▪️Provided with top cover / lid for improved thermal efficiency
▪️Heavy-duty design suitable for continuous laboratory and industrial use
▪️Can accommodate multiple dye pots depending on selected configuration
▪️Operates on 230 V AC, 50 Hz power supply
▪️Digital temperature controller with display
▪️Customized bath sizes and layouts
▪️GMP documentation and validation support
▪️Temperature Range: 5°C above ambient to 95°C ±2°C
▪️Control System: Thermostat controlled
▪️Construction Type: Rectangular, double-walled
▪️Insulation: Special grade glass wool
▪️Application Types: Universal laboratory heating & Dye pot heating
▪️Model Options: STD & GMP
▪️Power Supply: 230 V AC, 50 Hz
Technical Data – Water Baths (Universal)
| Model | Dimensions (L × B × H) cm | Heater Rating |
| (a) | 30 × 22.5 × 17.5 | 750 W |
| (b) | 45 × 30 × 17.5 | 1500 W |
Technical Data – Water Baths (Dyepots)
| Model | No. of Dye Pots | Capacity per Pot |
| (a) | 6 | 250 ml |
| (b) | 6 | 500 ml |
| (c) | 12 | 250 ml |
| (d) | 12 | 500 ml |
