MUFFLE FURNACES (LABORATORY)
The MB Lab Pro Services Industrial

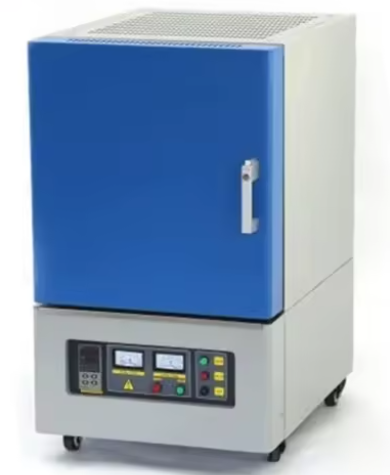

The MB Lab Pro Services Muffle Furnace is a high-temperature laboratory furnace designed for precise heat treatment, material testing, calcination, ash content determination, sintering, and thermal processing applications. Built with robust construction and advanced insulation systems, it ensures uniform temperature distribution, minimal heat loss, and safe operation at elevated temperatures.
Available in Standard and GMP models, the muffle furnace is suitable for laboratories, pharmaceutical units, research institutions, metallurgy labs, ceramics, chemical analysis, and educational environments requiring consistent and reliable high-temperature performance.
General Information | |
| Parameter | Details |
| Usage | Laboratory, Pharmaceutical, R&D, Chemical Analysis, Metallurgy, Ceramic Testing, Educational Institutions |
| Color | Grey / Stainless Steel Finish |
| Power Supply | Electric |
| Dimension | As per selected model (refer Technical Data table) |
| Voltage | 230 V AC, 50 Hz |
| Material | Standard: Mild Steel body (powder coated) GMP: SS 304 body |
| Warranty | 1 Year Standard Warranty |
High-Low Temp Range
Fast Humidity Stabilization
Advanced Humidity Control
24/7 Stability Assurance
Validated Test Accuracy
Precision Climate Mapping
Rapid Temperature Recovery
User-Friendly Interface
▪️Heavy-duty front-door construction for safe and easy loading/unloading
▪️Standard Model: Front door plate approx. 8 mm thick mild steel; body made from thick mild steel with durable powder-coated finish
▪️GMP Model: Front door plate approx. 8 mm thick SS 304; body constructed from thick SS 304 with matt finish
▪️Door filled with ceramic bricks and cement for enhanced thermal insulation and safety
▪️Rectangular, lightweight ceramic muffle chamber, fully enclosed for efficient heat retention
▪️Heating elements made from high-quality Kanthal wire for long life and stable heating
▪️Chamber covered with high-temperature glass wool blanket and fiber wool insulation to minimize outer surface heating
▪️Efficient exhaust arrangement at the rear for controlled release of fumes and steam
▪️Digital microprocessor-based PID temperature controller with auto-tune functionality
▪️Dual display system: one for set temperature and one for actual process temperature
▪️Thermocouple sensor with dedicated lead wire for accurate temperature sensing
▪️Two rocker indicator lamps for heater and main power status
▪️Ergonomically designed insulated door with temperature readout provision
▪️Operates on 230 V AC, 50 Hz single-phase power supply
▪️Digital timer with alarm and auto cut-off function
▪️Higher working temperature configuration (as per application)
▪️Data logging and external recorder interface
▪️Viewing port (on request)
▪️Customized chamber sizes beyond standard range
▪️Calibration certificate and IQ/OQ/PQ documentation
▪️Stand-mounted or custom-built furnace enclosure
▪️Maximum Temperature: 1200°C
▪️Working Temperature: 940°C / 1100°C (model dependent)
▪️Controller Type: Digital microprocessor-based PID controller
▪️Temperature Display: Dual display (Set value & Process value)
▪️Sensor Type: Thermocouple
▪️Heating Elements: Kanthal wire heating elements
▪️Chamber Type: Enclosed ceramic muffle chamber
▪️Insulation: Ceramic bricks, glass wool blanket & fiber wool
▪️Outer Body: Mild steel powder coated (STD) / SS 304 (GMP)
▪️Door Type: Front opening insulated door with temperature readout provision
▪️Power Supply: 230 V AC, 50 Hz
| Technical Data | |||
| Model | Muffle Chamber Size (D × H × W) cm | Power Rating (Watts) | Model Type |
| (a) | 22.5 × 10.0 × 10.0 | 1600 | STD / GMP |
| (b) | 25.0 × 12.5 × 12.5 | 2000 | STD / GMP |
| (c) | 30.0 × 12.5 × 12.5 | 3000 | STD / GMP |
| (d) | 30.0 × 15.0 × 15.0 | 3500 | STD / GMP |
| (e) | 42.0 × 22.5 × 22.5 | 6000 | STD / GMP |
