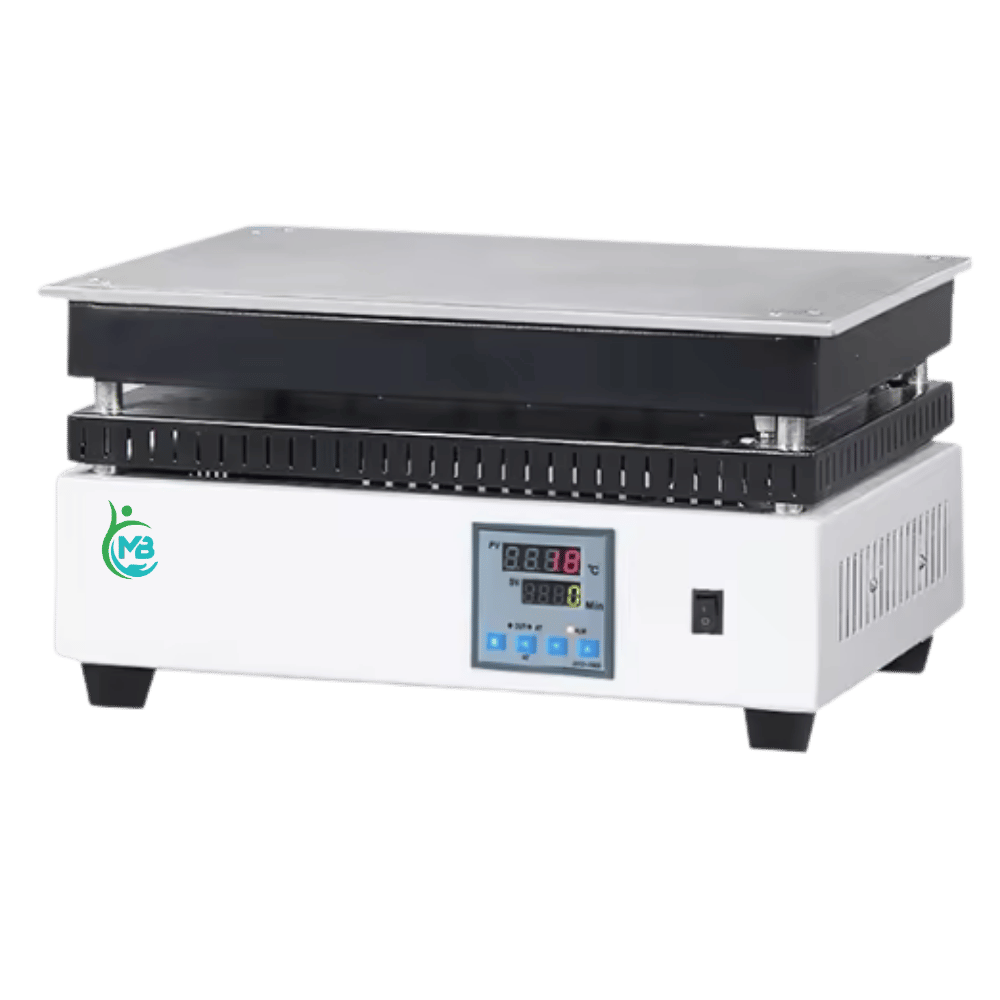

Hot Plates (Round & Rectangular)
The MB Lab Pro Services Hot Plates are designed for safe, uniform, and efficient heating applications in laboratories, pharmaceutical units, research centers, and educational institutes. Built for durability and consistent thermal performance, these hot plates are ideal for heating liquids, solutions, samples, and laboratory glassware. Available in both Round and Rectangular designs, and offered in Standard (STD) and GMP models, these hot plates provide reliable heating control with long service life and minimal maintenance.
| Parameter | Details |
| Usage | Laboratory, Pharmaceutical, Research & Development, Educational Institutions |
| Color | Grey (STD) / Stainless Steel Finish (GMP) |
| Power Supply | Electric |
| Dimension | As per selected size (refer Technical Data tables) |
| Voltage | 230 V AC, 50 Hz |
| Material | STD: Mild Steel body GMP: Stainless Steel 304 body |
| Warranty | 1 Year Standard Warranty |
Uniform Airflow System
High Precision Sensors
Smart Safety Controls
Energy-Efficient Cooling
Auto Defrost Function
Long-Life Components
High-Grade Steel Build
Overload Protection System
▪️Designed for uniform and stable surface heating
▪️Standard Model:
▫️Thick mild steel body with durable powder coating
▫️6 mm thick mild steel heating top plate
▪️GMP Model:
▫️Complete body made of Stainless Steel 304
▫️6 mm thick stainless steel top plate
▪️High-quality nichrome wire heating elements with proper ceramic beads insulation
▪️Heating elements placed on asbestos sheet for efficient and uniform heat distribution
▪️Thermostatically controlled temperature system for precise heating
▪️ON/OFF rocker switch for easy operation
▪️Rugged construction suitable for continuous laboratory use
▪️Low maintenance and long operational life
▪️Safe and stable design for daily laboratory heating applications
▪️Operates on 230 V AC, 50 Hz power supply
▪️Temperature indicator or digital controller
▪️Customized plate sizes (on request)
▪️Heavy-duty industrial-grade insulation
▪️GMP documentation and validation support
▪️Heating Method: Electric surface heating
▪️Control System: Thermostatic temperature control
▪️Heating Element: Nichrome wire
▪️Top Plate Thickness: 6 mm
▪️Construction Options: STD & GMP models
▪️Shape Options: Round and Rectangular
▪️Power Supply: 230 V AC, 50 Hz
| Model | Plate Size (Diameter) | Power Rating |
| (a) | 20.0 cm | 1.0 KW |
| (b) | 22.5 cm | 1.25 KW |
| (c) | 30.0 cm | 1.50 KW |
- Double walled modular structure with 3” thick PUF insulation
- Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
- Interior illumination
- Inside full length observation glass door with secure gasket
- Handle and hinges for positive sealing with lock and key arrangement
- Heavy-duty door hinges and latches to maintain a secure and uniform seal
- Racks & trays – Stainless steel with adjustable height
- 65 mm Port Hole with rubber seal to insert sensors for validation purpose
- Interior illumination for working area
- U shaped S.S. Nichrome wire air heaters
- Humidity system with evaporation tray and reservoir tank with water level arrangement
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
- PLC based control system with 7” colour touchscreen HMI.
- Safety controller sensor to cut off the supply in case of overshoot and undershoot of Temperature giving audio visual alarm
- Web based online monitoring
- Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
- Works on 23V AC single phase 50Hz
- Complete safety and alarm system
- 21 CFR Part 11 Compliance Window based communication software for data management
- Stand by refrigeration system & Stand by humidity system (Except for 90 Ltrs.)
- Scanner 4 point temperature and 4 point humidity scanner complete with sensors and printer interface and data storage facility.
- Mobile Alert system
- Door Access Security System
- Security Alarm System
- Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
- GMP Model(G) : Inside S.S. 304 & outside S.S. 304
- Temperature Range : 20°C to 60°C
- Temperature Accuracy : ± 0.2°C
- Temp Uniformity : ± 2°C
- Humidity Range : 40% to 95% RH
- Humidity Accuracy : ± 2% RH
- Humidity Uniformity : ± 3% RH
| Model | Plate Size (Diameter) | Power Rating |
| (a) | 20.0 cm | 1.0 KW |
| (b) | 22.5 cm | 1.25 KW |
| (c) | 30.0 cm | 1.50 KW |
