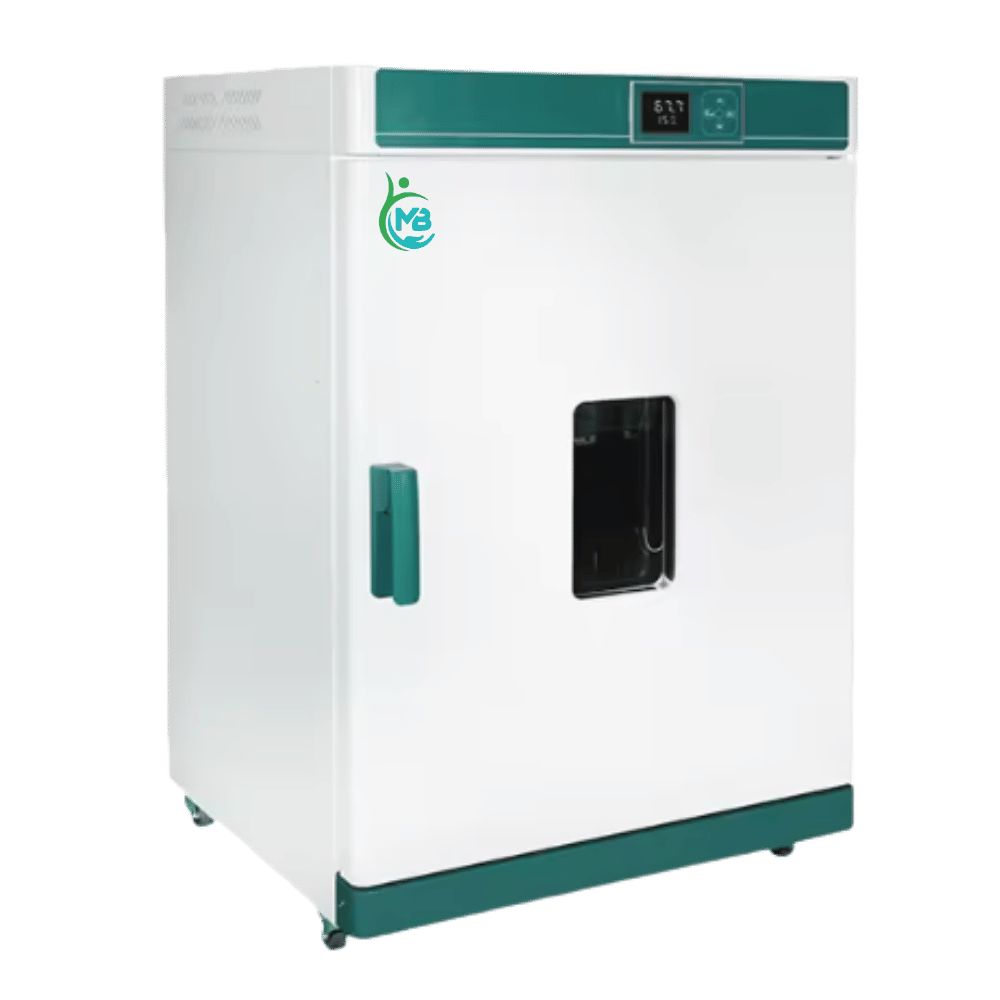

Hot Air Oven (Laboratory)
The MB Lab Pro Services Hot Air Oven (Laboratory) is a precision-engineered drying and sterilization solution designed for consistent and uniform heat distribution. Built with robust construction and reliable temperature control, it is ideal for laboratories, pharmaceutical manufacturing units, research facilities, quality control labs, and industrial testing environments.
This oven is suitable for drying glassware, sterilizing instruments, heat treatment, material testing, and aging applications where controlled high-temperature conditions are required.
| Parameter | Details |
| Usage | Laboratory, Pharmaceutical, R&D, Quality Control, Industrial Testing, Educational Institutions |
| Color | Grey / White (Powder Coated) / Stainless Steel Finish |
| Power Supply | Electric |
| Dimension | As per selected model (refer Technical Data table) |
| Voltage | 230 V AC, 50 Hz, Single Phase |
| Material | Inner chamber: SS 304 (Mirror Finish) Outer body: Powder Coated Mild Steel (STD) / SS 304 (GMP) |
| Warranty | 1 Year Standard Warranty |
Uniform Airflow System
High Precision Sensors
Smart Safety Controls
Energy-Efficient Cooling
Auto Defrost Function
Long-Life Components
High-Grade Steel Build
Overload Protection System
▪️Double-walled construction with high-density glass wool insulation for efficient thermal stability
▪️Inner chamber constructed from SS 304 mirror-finish stainless steel for corrosion resistance and easy cleaning
▪️Outer body made from powder-coated mild steel (STD model) or SS 304 matt finish (GMP model)
▪️U-type SS / nichrome wire heating elements for uniform heat generation
▪️Forced air circulation system using a heavy-duty fan motor for even temperature distribution
▪️Microprocessor-based PID controller with PT-100 temperature sensor for precise control
▪️Temperature operating range from 5°C above ambient to 250°C
▪️Adjustable stainless-steel wire mesh trays with SS clamping system
▪️Heavy-duty hinged door with high-temperature resistant gasket for air-tight sealing
▪️Over-temperature safety thermostat with visual/audio alarm indication
▪️Power ON indicator and easy-to-read digital temperature display
▪️Designed to operate on 230V AC, 50Hz single-phase power supply
▪️Supplied with operation & maintenance manual along with IQ/OQ/PQ documentation
▪️Tempered glass viewing window with interior illumination
▪️Digital programmable timer with auto cut-off facility
▪️21 CFR Part 11 compliant data logging software
▪️RS-232 / RS-485 communication interface for external monitoring
▪️Audio-visual alarm with remote alert feature
▪️Additional stainless-steel trays or customized rack configurations
▪️Door access interlock system for enhanced safety
▪️Extended warranty and preventive maintenance packages
▪️Temperature Range: 5°C above ambient to 250°C
▪️Temperature Accuracy: ±0.5°C
▪️Temperature Uniformity: ±1°C to ±2°C
▪️Controller Type: Digital PID controller with PT-100 sensor
▪️Insulation: High-grade glass wool insulation (approx. 75 mm)
▪️Heating Elements: SS / Nichrome wire heaters
▪️Air Circulation: Forced air circulation via fan motor
▪️Inner Chamber Material: SS 304 mirror finish
▪️Outer Body: Powder Coated Mild Steel (STD) / SS 304 (GMP)
▪️Shelves: Adjustable SS wire mesh trays
▪️Power Supply: 230 V AC, 50 Hz, Single Phase
| Model | Internal Dimensions (cm) | Power (Watts) | No. of Shelves |
| (a) | 30 × 30 × 30 | 750 | 1 |
| (b) | 35 × 35 × 35 | 1000 | 2 |
| (c) | 45 × 45 × 45 | 1500 | 2 |
| (d) | 45 × 45 × 60 | 1750 | 2 |
| (e) | 60 × 60 × 60 | 2000 | 3 |
| (f) | 60 × 60 × 90 | 2500 | 3 |
▪️Double-walled construction with high-density glass wool insulation for efficient thermal stability
▪️Inner chamber constructed from SS 304 mirror-finish stainless steel for corrosion resistance and easy cleaning
▪️Outer body made from powder-coated mild steel (STD model) or SS 304 matt finish (GMP model)
▪️U-type SS / nichrome wire heating elements for uniform heat generation
▪️Forced air circulation system using a heavy-duty fan motor for even temperature distribution
▪️Microprocessor-based PID controller with PT-100 temperature sensor for precise control
▪️Temperature operating range from 5°C above ambient to 250°C
▪️Adjustable stainless-steel wire mesh trays with SS clamping system
▪️Heavy-duty hinged door with high-temperature resistant gasket for air-tight sealing
▪️Over-temperature safety thermostat with visual/audio alarm indication
▪️Power ON indicator and easy-to-read digital temperature display
▪️Designed to operate on 230V AC, 50Hz single-phase power supply
▪️Supplied with operation & maintenance manual along with IQ/OQ/PQ documentation
▪️Temperature Range: 5°C above ambient to 250°C
▪️Temperature Accuracy: ±0.5°C
▪️Temperature Uniformity: ±1°C to ±2°C
▪️Controller Type: Digital PID controller with PT-100 sensor
▪️Insulation: High-grade glass wool insulation (approx. 75 mm)
▪️Heating Elements: SS / Nichrome wire heaters
▪️Air Circulation: Forced air circulation via fan motor
▪️Inner Chamber Material: SS 304 mirror finish
▪️Outer Body: Powder Coated Mild Steel (STD) / SS 304 (GMP)
▪️Shelves: Adjustable SS wire mesh trays
▪️Power Supply: 230 V AC, 50 Hz, Single Phase
- Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
- GMP Model(G) : Inside S.S. 304 & outside S.S. 304
- Temperature Range : 20°C to 60°C
- Temperature Accuracy : ± 0.2°C
- Temp Uniformity : ± 2°C
- Humidity Range : 40% to 95% RH
- Humidity Accuracy : ± 2% RH
- Humidity Uniformity : ± 3% RH
| Capacity | Inner Dimensions (H × D × W) cms | No. of Shelves |
| 1.5 CFT (45 L) | 35 × 35 × 35 | 1 |
| 3 CFT (90 L) | 50 × 43 × 43 | 2 |
| 6 CFT (180 L) | 70 × 51 × 51 | 2 |
| 10 CFT (300 L) | 100 × 55 × 55 | 3 |
| 12 CFT (360 L) | 100 × 60 × 60 | 3 |
| 16 CFT (480 L) | 114 × 65 × 65 | 4 |
