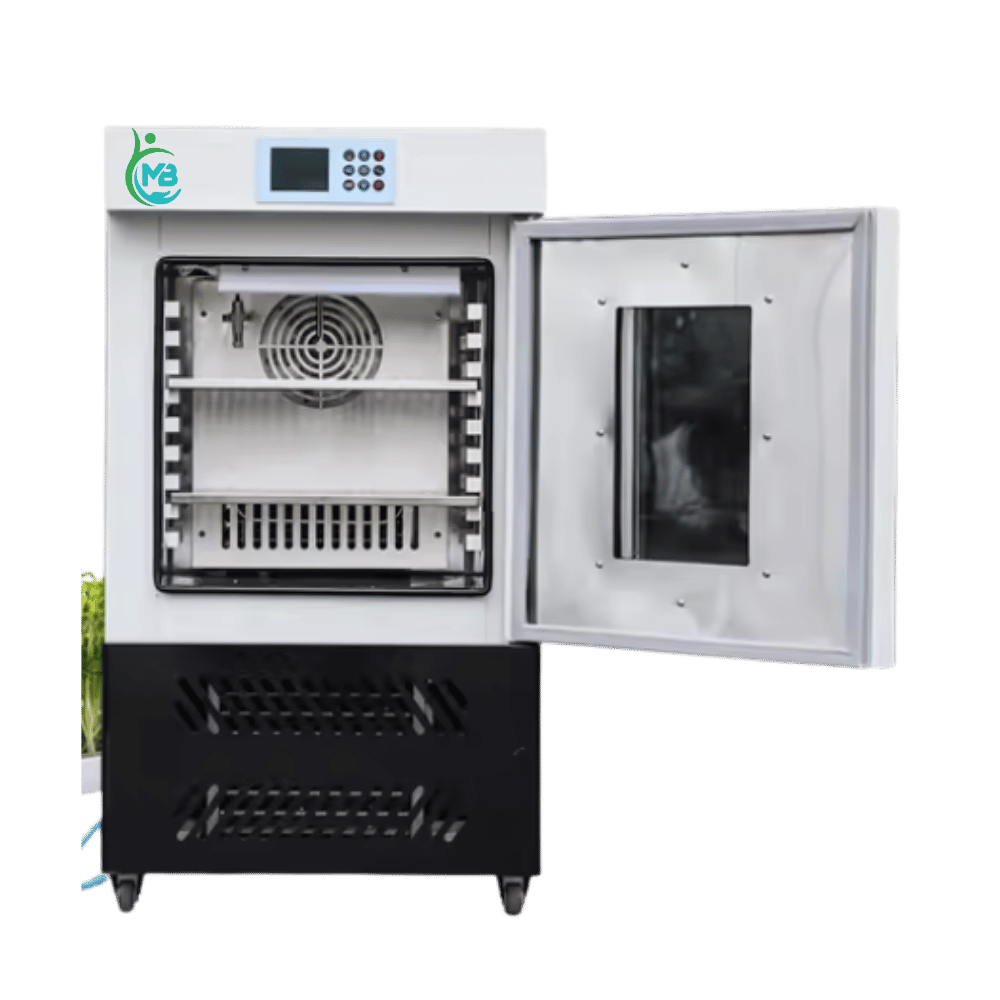

Plant Growth Chamber / Seed Germinator / Environmental Chamber

MB Lab Pro Services Plant Growth Chambers are designed for controlled environmental conditioning required for seed germination, plant growth studies, tissue culture, microbiology incubation, environmental simulation, and stability testing.
These chambers ensure reliable and uniform control of temperature, humidity, illumination, and air circulation, making them ideal for research laboratories, agriculture units, and biotech institutes.

Parameter	Details
Usage	Seed Germination, Plant Growth, Tissue Culture, Environmental Simulation, Research Applications
Color	White / Grey (STD), Stainless Steel Finish (GMP)
Power Supply	Electric
Dimension	As per capacity (See technical data)
Voltage	230V AC, 50 Hz
Material	STD: SS304 Inner + Powder-Coated MS Outer GMP: Full Stainless Steel 304
Warranty	1 Year

Touch Screen Display

▪️Complete Cooling / Heating / Humidity / Illumination controlled chamber
▪️Double-walled construction (STD & GMP models)
▪️Standard Model: SS304 inner chamber, MS powder-coated outer body
▪️GMP Model: Full Stainless Steel 304 (inner + outer)
▪️PU foam insulation with CFC-free polyurethane for high thermal stability
▪️Full-length inner glass door for clear visibility
▪️Outer metal door with magnetic gasket & lock
▪️Adjustable stainless-steel wire mesh trays
▪️Forced air circulation ensures uniform temperature throughout the chamber
▪️Hermetically sealed compressor (CFC-free refrigerant)
▪️Built-in fluorescent illumination with cyclic timer-based control
▪️Castor wheels for smooth mobility
▪️Digital Dual Display Temperature & RH Controller with PT-100 (RTD) sensor
▪️Temperature Range: 10°C to 60°C (±1°C)
▪️Humidity Range: 40% RH to 90% RH
▪️Steam-injected humidity generation system
▪️UV light source for chamber decontamination
▪️Power supply 230V AC 50 Hz

▪️PLC-based control system with recording
▪️SMS alert system
▪️Printer interface / Data logging
▪️Additional illumination control settings
▪️Advanced humidity controller modules

▪️Temperature Range: 10°C to 60°C
▪️Temperature Uniformity: ±1°C
▪️Humidity Range: 40% to 90%
▪️Illumination: Fluorescent tube lights with cyclic timer
▪️Cooling System: Hermetically sealed compressor
▪️Humidity System: Steam-injected
▪️Air Circulation: Motorized blower
▪️Controller: Digital dual display (Temp + RH)
▪️Sensor: PT-100 RTD

Capacity (Liters)	Working Space (H × D × W mm)	Trays	STD Model	GMP Model
6 cuft (171L)	505 × 415 × 830	6	STD MODEL	GMP MODEL
10 cuft (280L)	570 × 550 × 875	8	STD MODEL	GMP MODEL
12 cuft (336L)	650 × 580 × 900	14	STD MODEL	GMP MODEL
15 cuft (420L)	700 × 640 × 900	14	STD MODEL	GMP MODEL

▪️PLC-based control system with recording
▪️SMS alert system
▪️Printer interface / Data logging
▪️Additional illumination control settings
▪️Advanced humidity controller modules

Capacity (Liters)	Working Space (H × D × W mm)	Trays	STD Model	GMP Model
6 cuft (171L)	505 × 415 × 830	6	STD MODEL	GMP MODEL
10 cuft (280L)	570 × 550 × 875	8	STD MODEL	GMP MODEL
12 cuft (336L)	650 × 580 × 900	14	STD MODEL	GMP MODEL
15 cuft (420L)	700 × 640 × 900	14	STD MODEL	GMP MODEL
