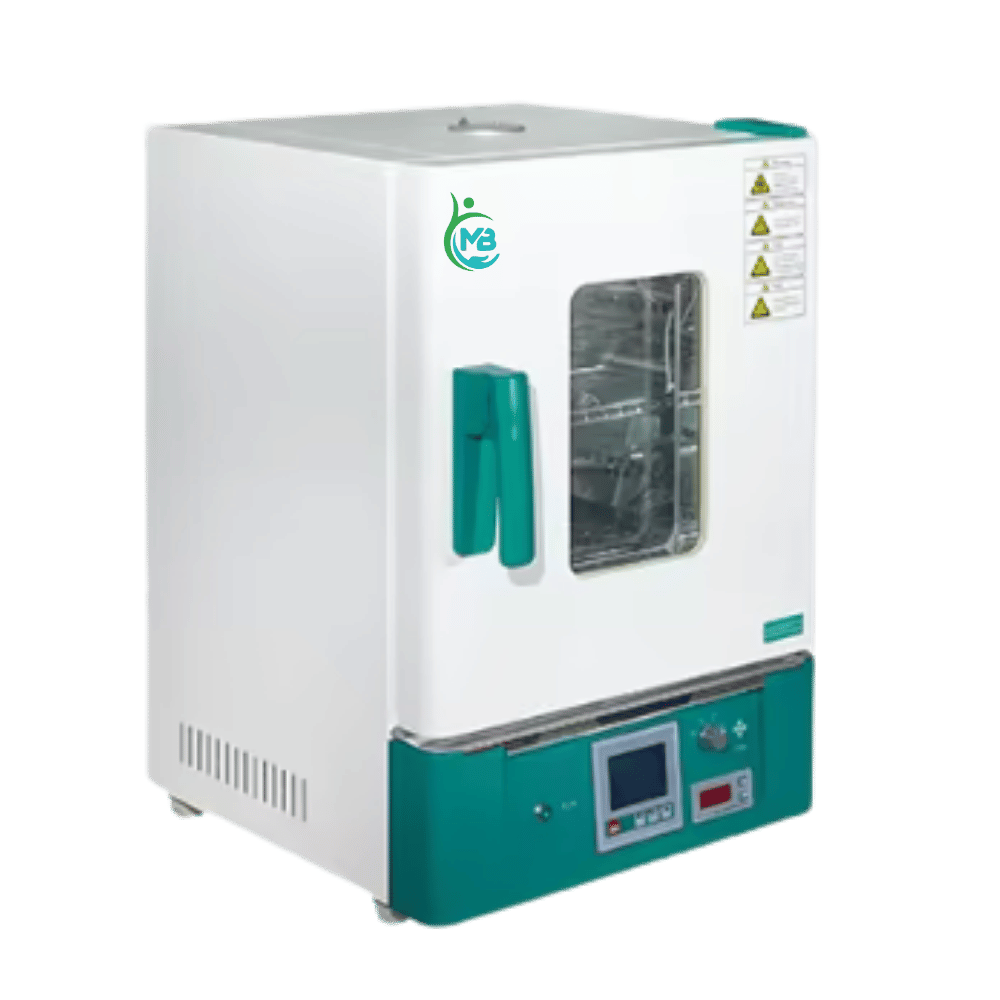

INDUSTRIAL OVENS (TRAY DRIERS)
The MB Lab Pro Services Industrial Oven (Tray Drier) is a heavy-duty drying solution designed for large-scale industrial, pharmaceutical, food, and chemical applications. Engineered with triple-walled construction and powerful hot-air circulation, this tray drier ensures uniform temperature distribution with minimal heat loss, making it ideal for batch drying, curing, baking, aging, and moisture removal processes.
Available in Ordinary, Standard, and GMP models, the Industrial Oven is built for continuous operation, high thermal efficiency, and long service life, meeting the demands of both industrial production and regulated manufacturing environments.
| Parameter | Details |
| Usage | Pharmaceutical Manufacturing, Food Processing, Chemical Industry, Industrial Drying, R&D, Quality Control |
| Color | Silver / Grey (Heat Resistant Powder Coated) / Stainless Steel Finish |
| Power Supply | Electric |
| Dimension | As per selected model (refer Technical Data table) |
| Voltage | 440 V AC, 3 Phase |
| Material | Ordinary: MS inner & outer (heat resistant coated) Standard: SS 304 inner & MS powder coated outer GMP: SS 304 inner & outer |
| Warranty | 1 Year Standard Warranty |
High-Low Temp Range
Fast Humidity Stabilization
Advanced Humidity Control
24/7 Stability Assurance
Validated Test Accuracy
Precision Climate Mapping
Rapid Temperature Recovery
User-Friendly Interface
▪️Triple-walled construction designed for high-temperature industrial drying applications
▪️Ordinary Model with inner mild steel chamber finished with heat-resistant silver coating
▪️Standard Model with SS 304 inner chamber and powder-coated mild steel outer body
▪️GMP Model constructed fully with SS 304 inner and outer chambers
▪️Inter-wall space filled with special-grade glass wool insulation to prevent heat loss and improve energy efficiency
▪️Heavy-duty motorized blower system ensures forced hot-air circulation for uniform temperature across all trays
▪️Designed to maintain stable temperature with minimal gradient throughout the working chamber
▪️Digital microprocessor-based auto-tune PID temperature controller
▪️Clear digital indicator with timer and alarm function
▪️High-quality Pt100 (RTD) temperature sensor for accurate process control
▪️Robust industrial design for continuous, long-duration operation
▪️Supplied without trays and trolley (available at extra cost)
▪️Suitable for both single-door and double-door configurations depending on model size
▪️Stainless steel trays for GMP applications
▪️MS or SS tray trolley system
▪️Dual-door construction for large capacity models
▪️Programmable digital timer with auto shut-off
▪️Audio-visual alarm for temperature deviation
▪️Data logging facility and printer interface
▪️Customized chamber sizes and tray layouts
▪️Validation documentation (IQ/OQ/PQ) on request
▪️Temperature Range: 50°C to 250°C
▪️Controller Type: Digital microprocessor-based PID controller with auto-tune
▪️Sensor Type: Pt100 (RTD)
▪️Air Circulation: Forced hot-air circulation using heavy-duty motorized blower
▪️Construction: Triple-walled insulated chamber
▪️Insulation: Special grade glass wool insulation
▪️Inner Chamber Material: MS (Ordinary) / SS 304 (STD & GMP)
▪️Outer Body: MS powder coated (Ordinary & STD) / SS 304 (GMP)
▪️Tray System: Trays & trolley supplied at extra cost
▪️Power Supply: 440 V AC, 3 Phase
| Model | No. of Trays | Door Type | Model Type |
| (a) | 12 | Single Door | Ordinary / STD / GMP |
| (b) | 24 | Single Door | Ordinary / STD / GMP |
| (c) | 48 | Double Door | Ordinary / STD / GMP |
| (d) | 96 | Double Door | Ordinary / STD / GMP |
- Double walled modular structure with 3” thick PUF insulation
- Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
- Interior illumination
- Inside full length observation glass door with secure gasket
- Handle and hinges for positive sealing with lock and key arrangement
- Heavy-duty door hinges and latches to maintain a secure and uniform seal
- Racks & trays – Stainless steel with adjustable height
- 65 mm Port Hole with rubber seal to insert sensors for validation purpose
- Interior illumination for working area
- U shaped S.S. Nichrome wire air heaters
- Humidity system with evaporation tray and reservoir tank with water level arrangement
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
- PLC based control system with 7” colour touchscreen HMI.
- Safety controller sensor to cut off the supply in case of overshoot and undershoot of Temperature giving audio visual alarm
- Web based online monitoring
- Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
- Works on 23V AC single phase 50Hz
- Complete safety and alarm system
▪️Stainless steel trays for GMP applications
▪️MS or SS tray trolley system
▪️Dual-door construction for large capacity models
▪️Programmable digital timer with auto shut-off
▪️Audio-visual alarm for temperature deviation
▪️Data logging facility and printer interface
▪️Customized chamber sizes and tray layouts
▪️Validation documentation (IQ/OQ/PQ) on request
▪️Temperature Range: 50°C to 250°C
▪️Controller Type: Digital microprocessor-based PID controller with auto-tune
▪️Sensor Type: Pt100 (RTD)
▪️Air Circulation: Forced hot-air circulation using heavy-duty motorized blower
▪️Construction: Triple-walled insulated chamber
▪️Insulation: Special grade glass wool insulation
▪️Inner Chamber Material: MS (Ordinary) / SS 304 (STD & GMP)
▪️Outer Body: MS powder coated (Ordinary & STD) / SS 304 (GMP)
▪️Tray System: Trays & trolley supplied at extra cost
▪️Power Supply: 440 V AC, 3 Phase
| Model | No. of Trays | Door Type | Model Type |
| (a) | 12 | Single Door | Ordinary / STD / GMP |
| (b) | 24 | Single Door | Ordinary / STD / GMP |
| (c) | 48 | Double Door | Ordinary / STD / GMP |
| (d) | 96 | Double Door | Ordinary / STD / GMP |
